Cheap ball screw
Manufactured in accordance with famous brand standards and made from quality assured material. Owing to the perfect finish and high performance, our ball screws are very popular and highly demanded in the market.
If you are willing to buy Ball Screw from manufacturers or suppliers in China, Youright Precision is your best choice. Look forward to your enquiry and further business negotiations !
Description
Youright Precision is one of the leading manufacturers of Ball screw in Lishui of China. It provides products that have high positioning accuracy and repeatability, smooth movement and long service life. Owing to these features, our ball screws are very popular and highly demanded in the mark. And they will be very good choices for you as well !
Company Advantage
OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.

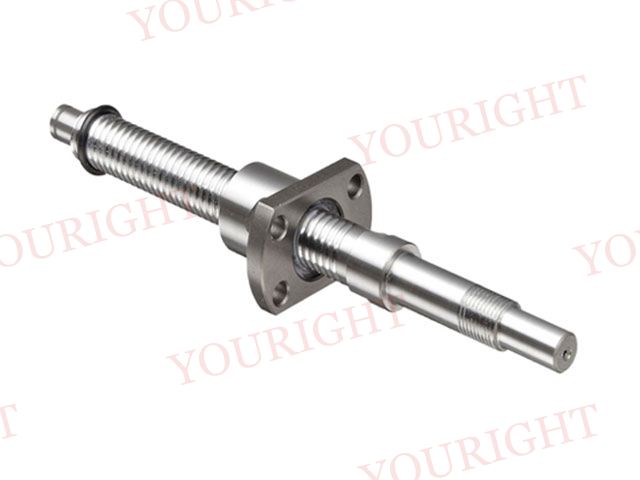

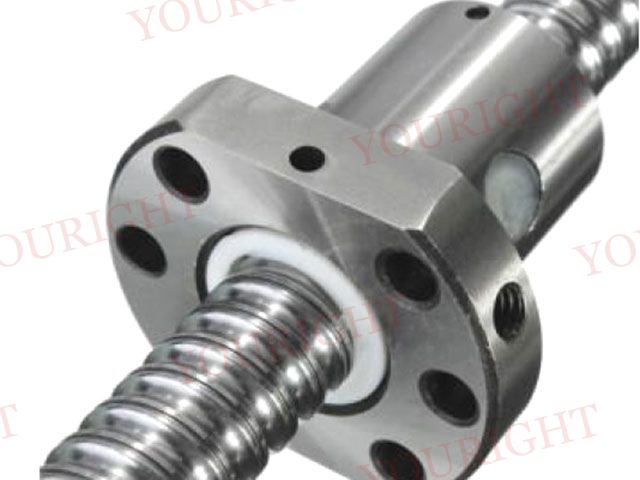

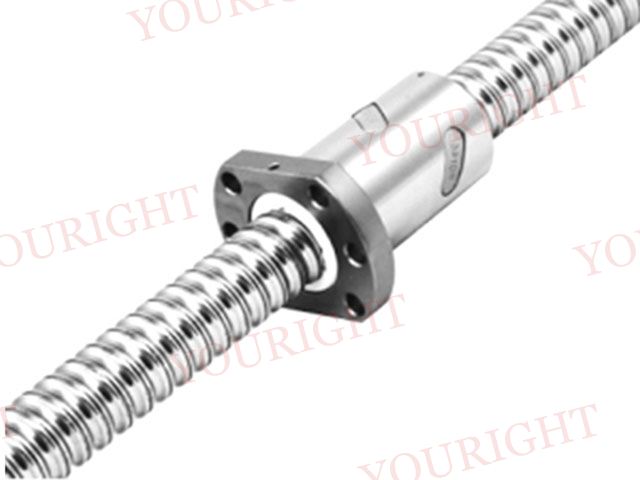

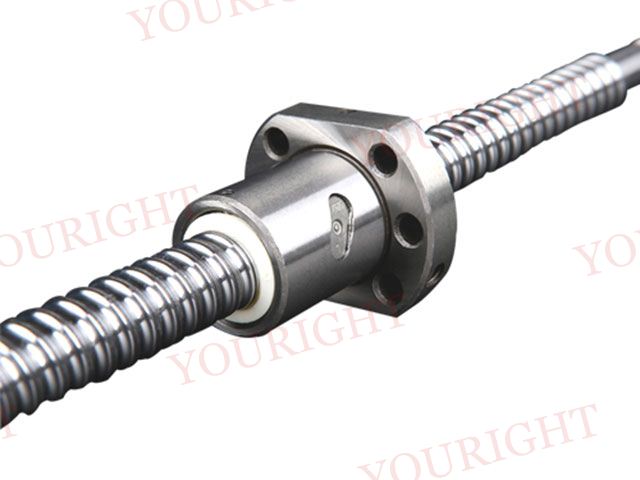

Details of Ball screw
Material and Heat Treatment
| Item | Material | Heat Treatment | Hardness |
| Ball Screw | SCM450 | Induction Heating | HRC58-62 |
| S55C | Hardening | ||
| CF53 | |||
| Ball Nut | SCM415 | Carbonizing Hardening | HRC58-62 |
| 20Cr | |||
| Steel ball | SUJ2 | HRC60 UP |
Features

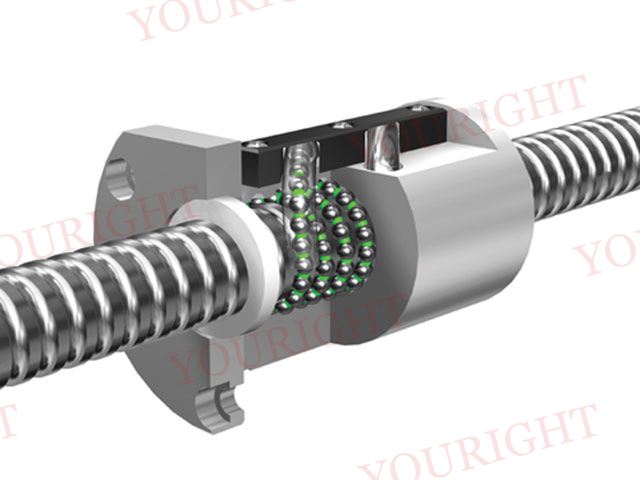

1. Space saving internal circulate design
2. Low friction force with 1/3 over acme screw
3. Ensure for high accuracies
4. Micro feed with tolerance within in 0.1μm
5. Zero backlash, high stiffness.
Ball screw Model Available
|
Pitch 4mm |
SFU1204, SFU1604, SFU2004, SFU2504 |
|
Pitch 5mm |
SFU1605, SFU2005, SFU2505, SFU3205, SFU4005, SFU5005 |
|
Pitch 10mm |
SFU1610, SFU2010, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310, SFU8010 |
|
Double nut |
DFU1604, DFU1605, DFU2005, DFU2505, DFU2510, DFU3205, DFU3210, DFU4005, DFU4010, DFU5010, DFU6310, DFU8010 |
|
Ball screw parts |
Ball screw nut, nut housing, ball screw support BK, BF, EK, EF, FK, FF end maching service are available |
Warranty Statement
The warranty period is 12 months since you received the goods at the destination port, if any other special requirement, please inform us, and we will serve better and better.
Exhibition and Customers
Application Industries
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free but do not pay the cost of freight.
Q: What is your terms of payment ?
1. If you have any query or doubt, please feel free to contact us , we will reply you soon.
2. If you have any suggestion, please also feedback to us, so that we can improve our service .
For more details, please feel free to contact us!
